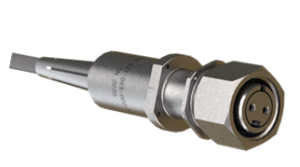

HIGH TEMPERATURE VIBRATION CABLE ASSEMBLY

Reference Model: EC069 Cable Assembly    Application: Gas Turbine Vibration Monitoring Systems

Product Description

The PD-HTVC-75VM0069 is a high-temperature, mineral-insulated vibration cable assembly designed for reliable signal transmission in severe industrial environments. It is intended for use with high-temperature piezoelectric vibration sensors installed on gas turbines and other rotating machinery.

The assembly uses a mineral-insulated low-noise cable with a high-temperature metallic sheath and threaded vibration-system connectors, providing resistance to heat, vibration and harsh operating conditions.

Key Features

  • High-temperature vibration cable assembly
  • Suitable for gas turbine vibration monitoring systems
  • Mineral Insulated (MI) low-noise cable
  • INCONEL Alloy 600 outer sheath
  • 2-wire with shield
  • Threaded high-temperature connector
  • Suitable for severe industrial environments
  • Equivalent configuration to EC069 cable assembly

Technical Specifications

ParameterSpecification
Petro Davvar Part NumberPD-HTVC-75VM0069
Reference TypeEC069
Cable TypeMineral Insulated (MI)
Outer SheathINCONEL Alloy 600
Conductors2-wire with shield
Connector TypeThreaded high-temperature vibration connector
Maximum Operating TemperatureUp to 650 °C
ApplicationVibration monitoring systems
Typical Sensor CompatibilityCA134 high-temperature accelerometer & another

Typical Application

CA134 High-Temperature Accelerometer
↓
PD-HTVC-75VM0069 Cable Assembly
↓
Signal Conditioner
↓
Turbine Protection & Monitoring System

Applications

Gas turbines • Steam turbines • Compressors • Pumps • High-temperature rotating machinery • Industrial vibration monitoring systems

Ordering Information

Product: High Temperature Vibration Cable Assembly

Manufacturer: Petro Davvar Energy Pajouhan

Part Number: PD-HTVC-75VM0069

Reference: EC069
